This app provides flat patterns for various shapes commonly used in fabrication, streamlining the layout process and improving accuracy. It significantly reduces fabrication time.

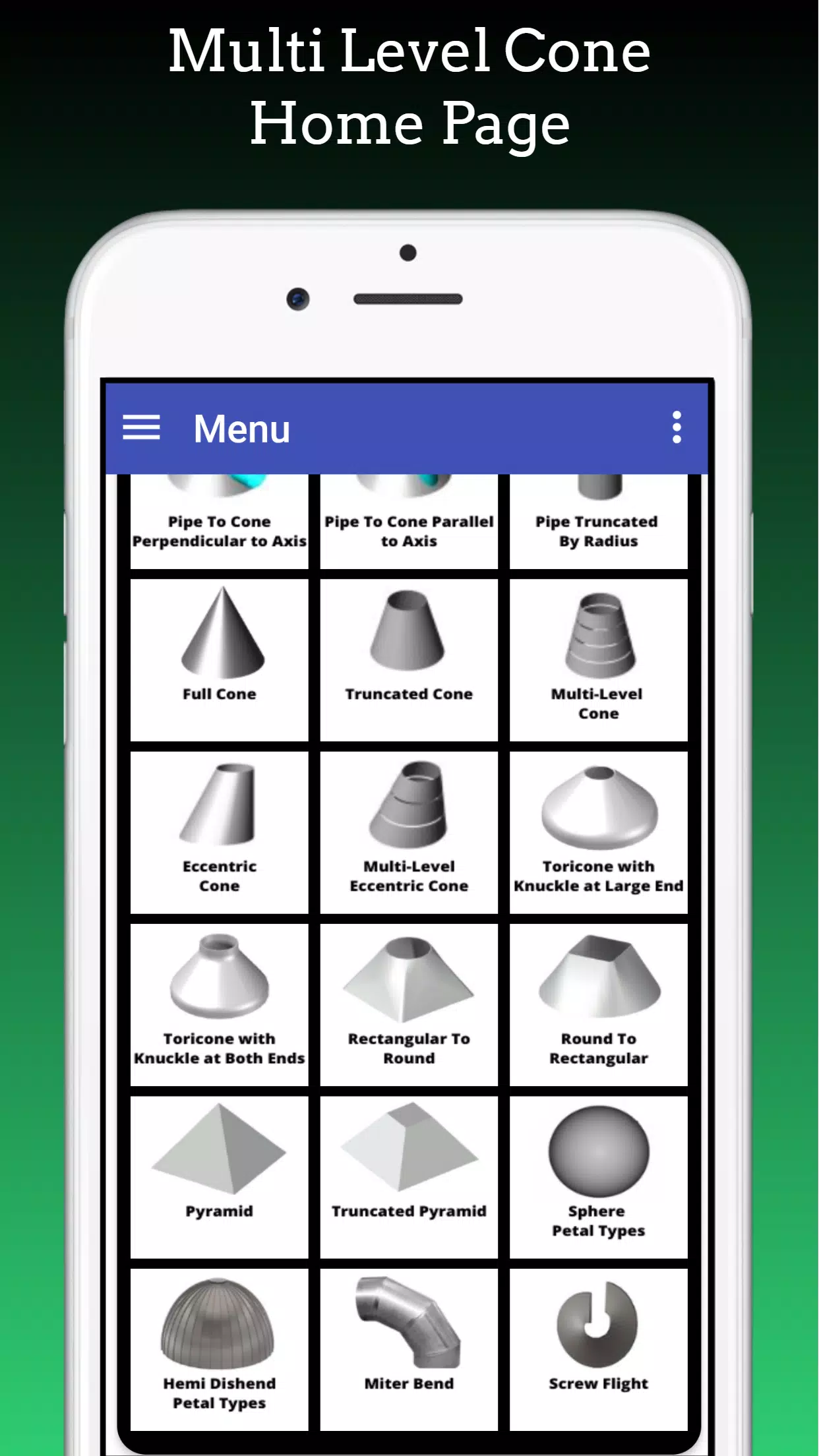

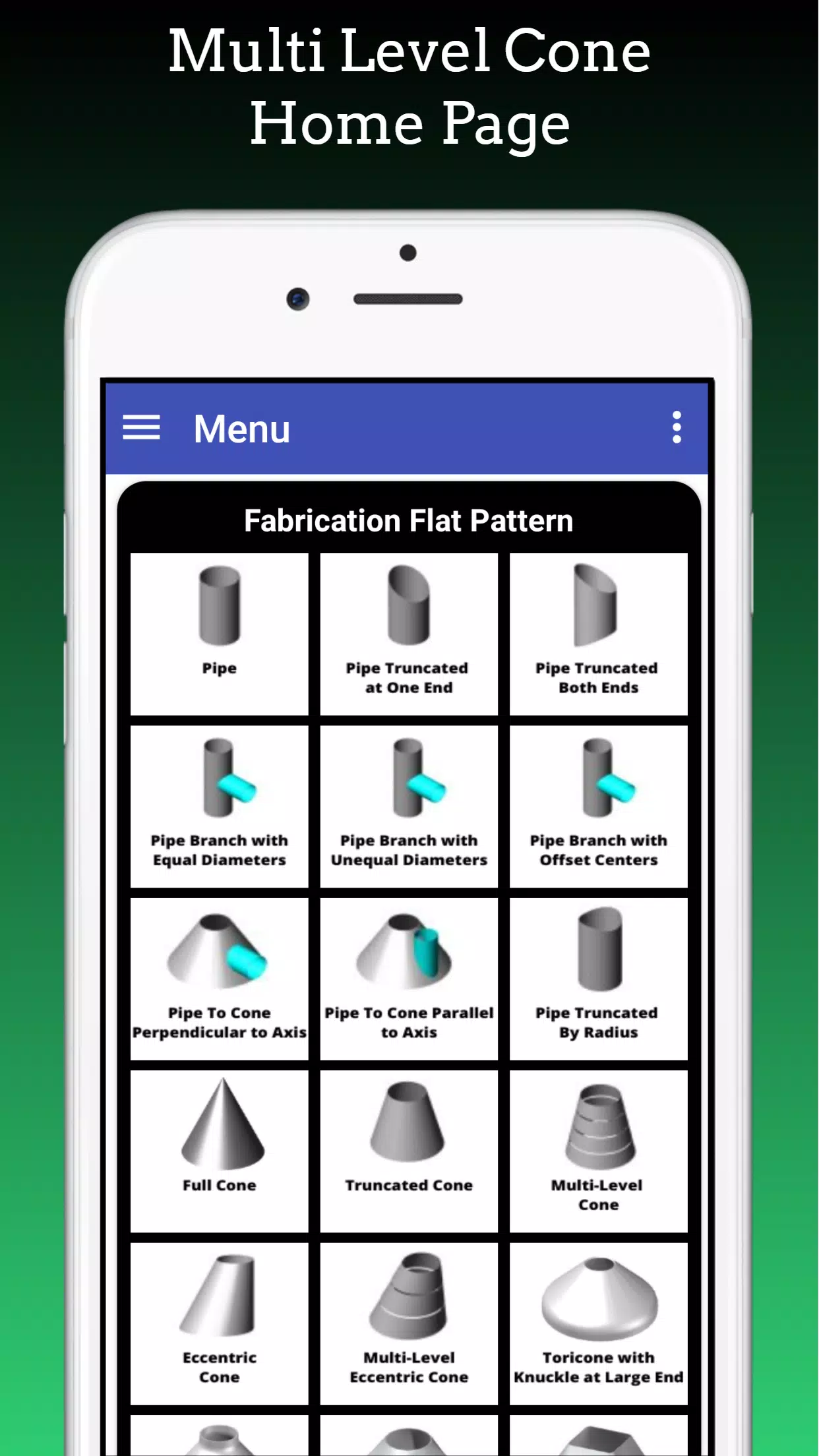

The app offers flat pattern options for:
- Pipe Layouts: Including standard pipe, truncated pipe (single and double angle cuts), and various pipe-to-pipe intersections (equal, unequal, and offset diameters).

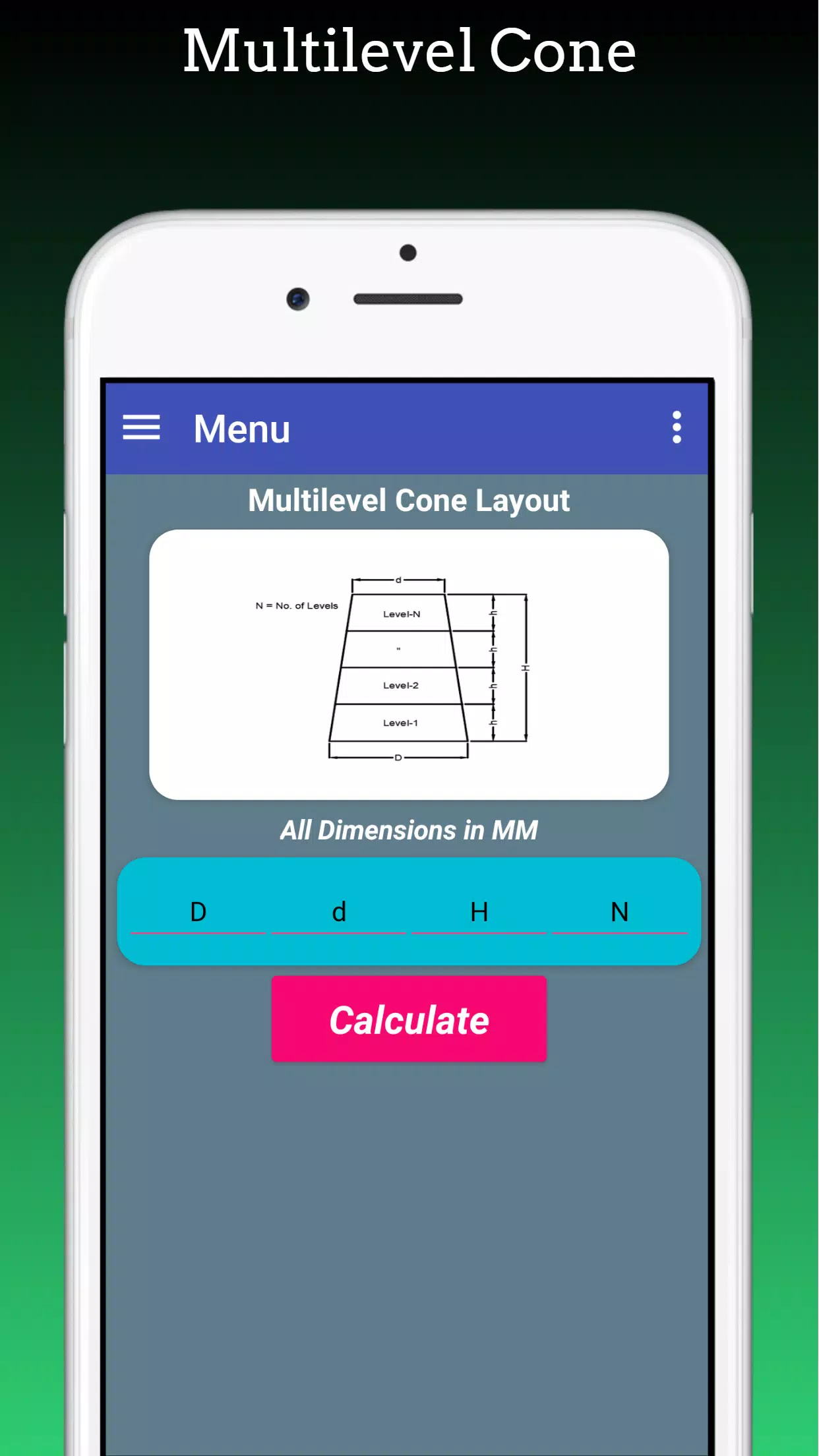

- Cone Layouts: Full cones, truncated cones, multi-level cones, and eccentric cones (single and multi-level). Toricones with knuckle radii (at one or both ends) are also included.
- Transitions: Square-to-round, round-to-square, rectangular-to-round, and round-to-rectangular transitions.
- Other Shapes: Pyramids (standard and truncated), sphere petals, dish end petals, miter bends, and screw flights.
This application is invaluable for professionals in pressure vessel fabrication, process equipment fabrication, welding, piping, insulation, ducting, heavy equipment fabrication, storage tank construction, agitator manufacturing, mechanical equipment fabrication, structural work, industrial fabrication, and heat exchanger production.
Ideal users include production engineers, fabrication engineers, planning engineers, cost and estimating engineers, project engineers, fabrication contractors, fabrication supervisors, fabrication fitters, and fabrication workers.
